• Photostable dyes suitable for microscopy or flow cytometry
  • CF®430 is a perfect match for the CFP filter set
  • Detectable by flow in the AmCyan channel

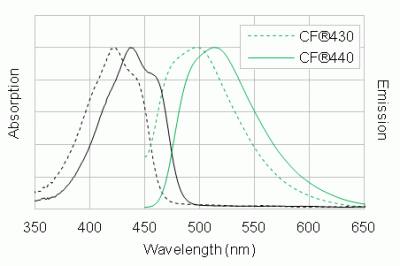

Figure 1. Normalized absorption and emission spectra of CF®430 (dashed lines) and CF®440 (solid lines) goat anti-mouse conjugates in PBS.

CF®430 and CF®440 are violet excitable dyes with green fluorescence emission, compatible with the AmCyan channel for flow cytometry. CF®430 and CF®440 are much more photostable than spectrally similar dyes, making them suitable for imaging applications using confocal microscopy with 405 nm excitation. CF®430 is a perfect match for the cyan fluorescent protein (CFP) filter set. See CF®430 and CF®440 product lines below. Additional conjugates or reactive dyes may be added upon request; contact techsupport@biotium.com to inquire.

CF®430 Technical Summary

  • Abs/Em: 426/498 nm
  • Extinction coefficient: 40,000
  • Molecular weight: ~429
  • Excitation laser line: 405 nm
  • Replaces: Pacific Green™, BD Horizon™ V500, Krome Orange™

CF®440 Technical Summary

  • Abs/Em: 440/515 nm
  • Extinction coefficient: 40,000
  • Molecular weight: ~706
  • Excitation laser line: 405 nm
  • Replaces: Alexa Fluor® 430

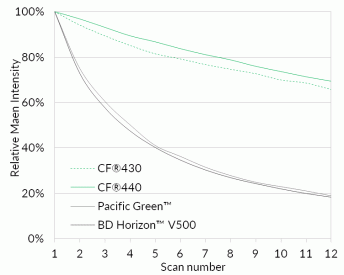

Figure 2. CF®430 and CF®440 are much more photostable than spectrally similar dyes. Cells were stained with biotinylated antibodies followed by streptavdin conjugates of the indicated dyes. Fluorescence was imaged on a Zeiss LSM700 confocal microscope in the FITC channel using 405 nm excitation. Images were acquired every 5 seconds for 12 consecutive scans. Mean fluorescence intensity was normalized to time 0.
Figure 3. Flow cytometry analysis of Jurkat cells stained with isotype control (gray peak) or mouse anti-CD3 antibody (green peak) followed by CF®430 goat anti-mouse IgG. Fluorescence was analyzed in the AmCyan channel of a BD LSRII flow cytometer.

CF is a registered trademark of Biotium, Inc. Alexa Fluor is a registered trademark of Thermo Fisher Scientific; Horizon is a trademark of BD Biosciences; Krome Orange is a tradmark of Beckman Coulter.

CF® Dye Spectrum:

CF®350 Dye
CF®350 is a blue fluorescent dye

Technical Summary

Abs/Em Maxima: 347/448 nm
Extinction coefficient: 18,000
Molecular weight: ~ 496
Excitation source: UV
Replaces: Alexa Fluor® 350, AMCA,
DyLight® 350

Features

Brighter and more photostable than AMCA
Direct replacement for Alexa Fluor® 350
Highly water soluble and pH-insensitive

View Technology

CF®405S Dye
Improved brightness & photostability for the 405 nm laser line

Technical Summary

Abs/Em Maxima: 404/431 nm
Extinction coefficient: 33,000
Molecular weight: ~ 1,169
Excitation laser line: 405 nm
Replaces: Alexa Fluor® 405, Cascade Blue®,
DyLight® 405

Features

Brighter than Alexa Flour®  408

View Technology

CF®405M Dye
Improved brightness & photostability for the 405 nm laser line

Technical Summary

Abs/Em Maxima: 408/452 nm
Extinction coefficient: 41,000
Molecular weight: ~ 503
Excitation laser line: 405 nm
Replaces: Pacific Blue®, BD Horizon™ V450

Features

More photostable than Pacific Blue®, with less spill-over in the green channel
An excellent choice for super-resolution imaging by SIM

View Technology

CF®405L Dye
A 405 nm-excitable dye with orange fluorescence emission

Technical Summary

Abs/Em Maxima: 395/545 nm
Extinction coefficient: 24,000
Molecular weight: ~1573
Excitation laser line: 405 nm
Replaces: Pacific Orange®

View Technology

CF®430 & CF®440 Dyes
Photostable 405 nm-excitable dyes with green fluorescence

Technical Summary

CF®430
Abs/Em Maxima: 426/498 nm
Extinction coefficient: 40,000
Molecular weight: ~429
Excitation laser line: 405 nm
Replaces: Pacific Green®, BD Horizon™ V500,
Krome Orange™
CF®440
Abs/Em Maxima: 440/515 nm
Extinction coefficient: 40,000
Molecular weight: ~716
Excitation laser line: 405 nm
Replaces: Alexa Fluor® 430

Features

Photostable dyes suitable for microscopy
Perfect match for the CFP filter set
Suitable for flow cytometry in the AmCyan channel
Highly water soluble and pH-insensitive

View Technology

CF®450 Dye
A green fluorescent dye with unique spectral properties

Technical Summary

Abs/Em Maxima: 450/538 nm
Extinction coefficient: 40,000
Molecular weight: ~689
Excitation laser line: 405 nm

View Technology

CF®488A Dye
A superior green fluorescent dye

A superior green fluorescent dye

Technical Summary

Abs/Em Maxima: 490/515 nm
Extinction coefficient: 70,000
Molecular weight: ~914
Excitation laser line: 488 nm
Replaces: Alexa Fluor® 488, DyLight® 488,
fluorescein (aka FITC, FAM), Cy®2

Features

Minimally charged, for less non-specific binding than Alexa Fluor® 488
Narrower emission spectrum for less bleed to red
Very photostable
Compatible with super-resolution imaging by TIRF
Highly water soluble and pH-insensitive

View Technology

CF®503R Dye
A unique green dye or multispectral detection or FRET

Technical Summary

Abs/Em maxima: 503/532 nm
Extinction coefficient: 90,000
Molecular weight: ~1100
Excitation laser line: 488 nm
Direct replacement for: ATTO 488

View Technology

CF®514 Dye
Alternative green fluorescent dye

Technical Summary

Abs/Em Maxima: 516/548 nm
Extinction coefficient: 105,000
Molecular weight: ~1216
Excitation laser line: 488 nm
Replaces: Alexa Fluor® 514

Features

Image using the same settings as FITC or CF®488A
Can be distinguished from CF®488A in the same specimen by spectral imaging and linear unmixing

View Technology

CF®532 Dye
A bright orange fluorescent dye for the 532 nm laser

Technical Summary

Abs/Em Maxima: 527/558 nm
Extinction coefficient: 96,000
Molecular weight: ~ 685
Excitation laser line: 532 nm
Direct replacement for: Alexa Fluor® 532, Atto 532

Features

Designed for the 532 nm laser
Brighter than Alexa Fluor® 532
Highly water-soluble and pH-insensitive

View Technology

CF®535ST Dye
An orange fluorescent dye designed for STORM super-resolution imaging

Technical Summary

Abs/Em Maxima: 535/568 nm
Extinction coefficient: 95,000
Molecular weight: ~728
Excitation laser line: 532 nm

View Technology

CF®543 Dye
An orange fluorescent dye ideal for the 543 nm laser

Technical Summary

Abs/Em Maxima: 541/560 nm
Extinction coefficient: 100,000
Molecular weight: ~ 870
Excitation laser line: 532 nm, 543 nm, or
546 nm
Direct replacement for: Alexa Fluor® 546,
TAMRA

Features

Optimized for the 543 nm laser
Yields the brightest conjugates among spectrally similar dyes
Highly water-soluble and pH-insensitive

View Technology

CF®550R Dye
A unique orange/red dye for multispectral detection or FRET

Technical Summary

Abs/Em maxima: 551/577 nm
Extinction coefficient: 100,000
Molecular weight: ~686
Excitation laser line: 532 nm or 568 nm

View Technology

CF®555 Dye
A bright and photostable orange-red dye

Technical Summary

Abs/Em Maxima: 555/565 nm
Extinction coefficient: 150,000
Molecular weight: ~ 901
Excitation laser line: 532 nm or 568 nm
Direct replacement for: Alexa Fluor®
555, ATTO 550, Cy®3, DyLight® 549,
Rhodamine

Features

Brighter than Cy®3
Highly water-soluble
Validated in multicolor STORM super-resolution imaging

View Technology

CF®568 Dye
Outshines Alexa Fluor®568

Outshines Alexa Fluor®568

Technical Summary

Abs/Em Maxima: 562/583 nm
Extinction coefficient: 100,000
Molecular weight: ~ 714
Excitation laser line: 532 nm or 568 nm
Direct replacement for: Alexa Fluor® 568,
ATTO 565, Rhodamine Red

Features

Yields much brighter antibody conjugates than Alexa
Fluor® 568
Extremely photostable
Excellent choice for multi-color imaging with CF®488A and CF®640R
Compatible with TIRF and multicolor STORM super resolution imaging

View Technology

CF®570 & CF®583 Dyes
Bright red fluorescent dyes

Technical Summary

CF®570 Technical Summary

Abs/Em maxima: 568/591 nm
Extinction coefficient: 150,000
Molecular weight: ~2998
Excitation laser line: 561 to 568 nm
Replaces: Alexa Fluor® 568, ATTO 565, DY-560, Rhodamine Red

CF®583 Technical Summary

Abs/Em maxima: 583/606 nm
Extinction coefficient: 150,000
Molecular weight: ~3127
Excitation laser line: 561 to 568 nm
Replaces: Cy®3.5

View Technology

CF®594 Dye
Truly the brightest deep red dye

Technical Summary

Abs/Em Maxima: 593/614 nm
Extinction coefficient: 115,000
Molecular weight: ~730
Excitation laser line: 532 nm, 568 nm or
594 nm
Replaces: Alexa Fluor® 594, DyLight® 594,
Texas Red®

Features

Yields the brightest antibody conjugates among spectrally
similar dyes.
Excellent choice for multicolor imaging with green dyes like CF®488A
Extremely photostable
Also see CF®594ST, a version of CF®594 engineered specifically for STORM microcopy

View Technology

CF®594ST Dye
Deep red dye for STORM

Technical Summary

Abs/Em maxima: 593/614 nm
Extinction coefficient: 115,000
Molecular weight: ~868
Excitation laser line: 532 to 568 nm

View Technology

CF®620R Dye
A bright and photostable far-red dye

Technical Summary

Abs/Em Maxima: 617/639 nm
Extinction coefficient: 115,000
Molecular weight: ~ 738
Excitation laser line: 633 nm or 635 nm
Replaces: LightCycler® Red 640

Features

Highly water-soluble
Highly fluorescent and extremely photostable
Absorption/emission at 617/639 nm for use in FRET or multi-color detection

View Technology

CF®633 Dye
The best dye for 633/635 laser lines

Technical Summary

Abs/Em Maxima: 630/650 nm
Extinction coefficient: 100,000
Molecular weight: ~820
Excitation laser line: 633 nm or 635 nm
Replaces: Alexa Fluor® 633, Alexa Fluor®
647, Cy®5, DyLight® 633, DyLight® 649

Features

Yields the brightest antibody conjugates among spectrally similar dyes
Far more photostable than Alexa Fluor® 647
Compatible with TIRF, FIONA, and gSHRImP super-resolution imaging methods

View Technology

CF®640R Dye
A highly photostable far-red dye

A highly photostable far-red dye

Technical Summary

Abs/Em Maxima: 642/662 nm
Extinction coefficient: 105,000
Molecular weight: ~ 832
Excitation laser line: 633 nm, 635 nm or
640 nm
Replaces Alexa Fluor® 647, ATTO 647N,
Cy®5, DyLight® 649

Features

Best photostability among Cy®5-like dyes
Yields highly fluorescent protein conjugates
Compatible with TIRF and FLIMP super-resolution microscopy

View Technology

CF®647 Dye
A highly fluorescent far-red dye

Technical Summary

Abs/Em Maxima: 650/665 nm
Extinction coefficient: 240,000
Molecular weight: ~ 1058
Excitation laser line: 633 nm, 635 nm or
640 nm
Replaces: Cy®5, Alexa Fluor® 647,
DyLight® 649

Features

Brighter than Cy®5
Highly water soluble and pH insensitive
Validated in multi-color super-resolution imaging by STORM

View Technology

CF®660C and CF®660R Dyes
Superior alternatives to Alexa Fluor® 660

Technical Summary

CF®660C
Abs/Em Maxima: 667/685 nm
Extinction coefficient: 200,000
Molecular weight: ~ 3112
Excitation laser line: 633 nm, 635 nm or 640 nm
Replaces: Alexa Fluor® 660, APC

CF®660R
Abs/Em Maxima: 663/682 nm
Extinction coefficient: 100,000
Molecular weight: ~ 888
Excitation laser line: 633 nm, 635 nm or 640 nm
Replaces: Alexa Fluor® 660, APC

Features

CF®660C Features
Much brighter and more photostable than Alexa Fluor® 660
Compatible with multicolor super-resolution imaging by STORM

CF®660R Features
Brighter than Alexa Fluor® 660
Unrivaled photostability among spectrally similar dyes

View Technology

CF®680 and CF®680R Dyes
Two outstanding 680 nm-excitable dyes

Technical Summary

CF®680
Abs/Em Maxima: 681/698 nm
Extinction coefficient: 210,000
Molecular weight: ~ 3241
Excitation laser line: 680 nm or 685 nm
Replaces: Alexa Fluor® 680, Cy®5.5, IR®Dye 680

CF®680R
Abs/Em Maxima: 680/701 nm
Extinction coefficient: 140,000
Molecular weight: ~ 912
Excitation laser line: 680 nm or 685 nm
Replaces: Alexa Fluor® 680, Cy®5.5, IR®Dye 680

Features

CF®680 Features
The brightest among spectrally similar dyes
Validated in multicolor STORM and 3D super-resolution
microscopy
Compatible with LI-COR® Odyssey®

CF®680R Features
Unrivaled photostability among spectrally similar dyes
Compatible with STED and single molecule spectroscopy super-resolution imaging (see pp. 20-21)
Molecular weight compatible with nucleic acid labeling
Compatible with LI-COR® Odyssey®

View Technology

Near-Infrared CF® Dyes
Choose from six unrivaled dyes with emission from 720 to 835 nm

Technical Summary

CF®700
Abs/Em Maxima: 695/720 nm
Extinction coefficient: 240,000
Molecular weight: ~ 2315
Excitation laser line: 633, 635, 680 or 685 nm
Replaces: Alexa Fluor® 700, DyLight® 700

CF®750
Abs/Em Maxima: 755/777 nm
Extinction coefficient: 250,000
Molecular weight: ~ 3009
Excitation laser line: 633, 635, 680 or 685 nm
Replaces: Alexa Fluor® 750, Cy®7, DyLight® 750

CF®770
Abs/Em Maxima: 770/797 nm
Extinction coefficient: 220,000
Molecular weight: ~ 3138
Excitation laser line: 785 nm
Replaces: DyLight™ 800, IRDye 800CW

CF®790
Abs/Em Maxima: 784/806 nm
Extinction coefficient: 210,000
Molecular weight: ~ 3267
Excitation laser line: 785 nm
Replaces: Alexa Fluor® 790

CF®800
Abs/Em Maxima: 797/816 nm
Extinction coefficient: 210,000
Molecular weight: ~3334
Excitation laser line: 785 nm
Spectrally similar to: Indocyanine Green

CF®820
Abs/EmMaxima: 822/835 nm
Extinction coefficient: 253,000
Molecular weight: ~2553
Excitation laser line: 785 nm

Features

Exceptionally bright and stable
Ideal for in vivo imaging
Compatible with LI-COR® Odyssey®
Superior signal-to-noise for bioconjugates
Dye options for STORM & photoacoustic imaging

View Technology

CF® Dyes for Multi-Color Super-Resolution Microscopy

Features

CF Dyes validated in SIM, STORM, STED, TIRF, and more
Superior brightness, photostability, and photochemical switching
Single label antibody conjugates for STORM
Growing list of publications

View Technology
